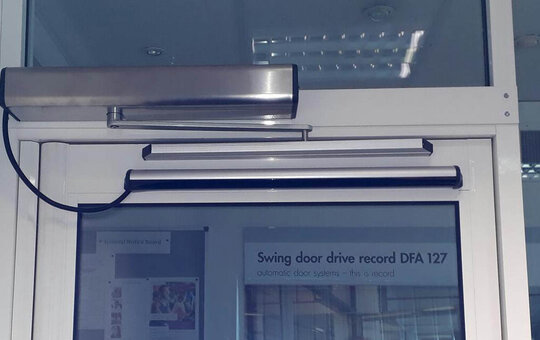

record DFA 127 FULL POWER – Automatic swing door with additional functions

Automatic drive system for swing doors

The record DFA 127 FULL POWER is the powerhouse in the family of record swing door operators. It's versatility means it is perfect for providing automatic opening in a wide range of environments, from busy shopping malls to quieter offices and gentler spaces. It is compact and reliable with microprocessor technology allowing many additional functions. Its adjustable spring force enables a range of door sizes from EN4 to EN6 to be used and customer-specific settings to be accommodated. The sophisticated technology in the record control enables complex functions to be programmed with ease and optimum power deployment in the entire swing area.

Especially suitable for use in

The record DFA 127 FULL POWER 's  self-monitoring, microprocessor-controlled swing door operator is suitable for a wide range of applications. The path of every door movement is controlled by the microprocessor which evaluates the current door position, the door speed and the final position at every instant to precisely calculate the optimum motion. This eliminates any sudden end-stops, jerky braking actions, or creep speed increases. Safety is also additionally increased by the use of a redundant force limitation option which comes into operation should power to the main operator be lost.

The record DFA 127 FULL POWER is available to operate doors in sizes EN4 to EN6. In  the event that adjustments have to be made due to local or country-specific circumstances the spring forces required can be quickly and precisely adjusted on the spot using the special adjustment screw. Double swing doors can be with or without master /slave operation. This model also provides many other sophisticated features, allowing pre-defined door types to be quickly and easily adapted.

Features

  • refined technology
  • compact design
  • practically silent operation
  • power saving mode
  • programmable micro processor
  • easy to use control switch BDE-E

Benefits

  • reliable and versatile
  • wide range of applications
  • can be modified to suit functional requirements
  • functional options available

Options

  • redundant force limitation option
  • break-out option for emergency exit available
  • double swing doors with or without master/slave operation
  • adjustable opening of one or both door panels (stretcher opening)
  • interlock function for two single doors installed consecutively
  • direction-oriented opening for oncoming traffic in corridors
